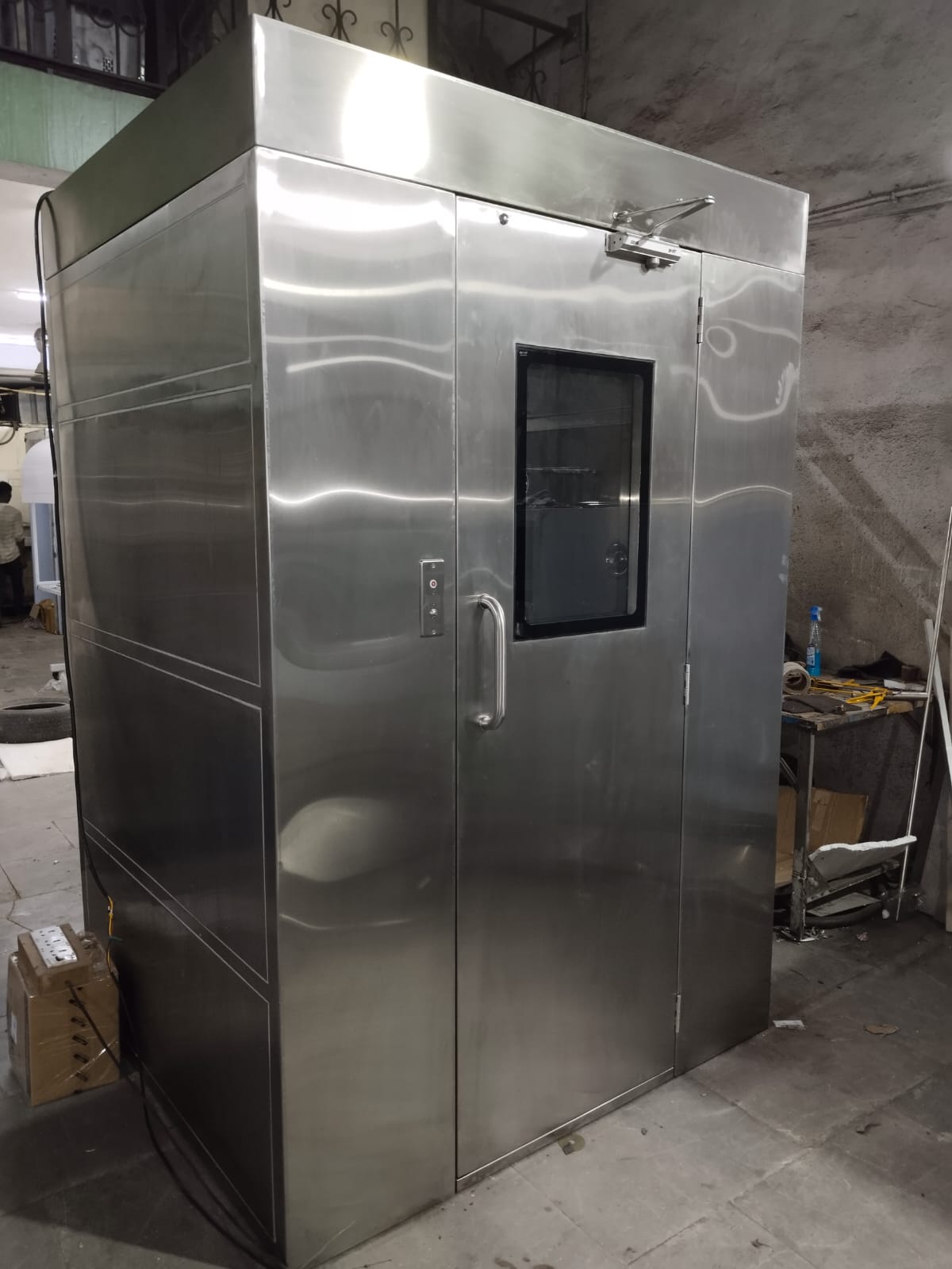

AIRSHOWER
Air shower are specialized enclosed antechambers which are incorporated as entryways of cleanrooms and other Controlled environments to reduce particle contamination. Air showers utilize high-pressure, hepa- or ulpa-filtered Air to remove dust, fibrous lint and other contaminants from personnel or object surfaces.
Air shower is designed to supply class 100 hepa filtered air at high velocity it helps remove particulate matter From the personnel entering into the clean room. Air shower works as partial clean equipment installed at the Partition between the clean room and non-clean rooms to shower the personnel or matters before entering the clean Area. This unit helps to remove dust effectively and maintains the normal working status
Standard Specification
- SS 304 Sheet-1 mm thik sheet matt finished
- Interlocking System to ensure that both the doors cannot open at the same time & to ensure that both the door stay locked during the time of air flow.Time Setting for Air shower operation time (settable for 30 seconds to 5 minutes) Emergency Stop will be provided
- Door entry Straight entry Straight exit and 90degree door opening
- Hepa Filter 0.3 micron Box Type, Moc:Aluminium, Media:Micro Fiber Glass, Efficiency:99.999% down to 0.3 Micron,Grade:H14
- Fine Filter 5 micron Flange Type, Moc:Aluminium, Media:NonWoven synthetic Polyester,Efficiency:95% down 5 Micron, Grade:EU 5
- Double Shaft Motor Blowerr ,1.0/0.5 H.P, 2800 R.P.M, 230 volt, 1 Phase
- Magnehlic Guage 0-25 mm
- SS Atmosphere Nozzle (SS 304) S
- SS 304 DOP Port for PAO test
- Air Adjustable Nozzle 25 mm Dia
- SS 304 doors with double walled flush glass view panels and door closer
- Clear view Toughen Glass in door – 5 mm thik glass
- Blower generated Nozzle Air velocity 4000-6000 FPM with 25 mm dia. Nozzle which EffectivelyCleans thesurfaceofObject
- SS 304 Hinges For Door
- Fluorescent light 5-18 watt
- Electrical Supply 230V AC 1-Phase
Description
