Vertical Laminar Air Flow with Glove Port & 100% Return Provision is specially designed for contamination-controlled operations where operator protection and product protection are essential. The unit provides ISO Class 5 / Class 100 clean air conditions inside the working chamber through HEPA-filtered vertical airflow.
The glove port arrangement allows safe handling of sensitive, hazardous, sterile, or powder-generating materials without direct operator contact. The 100% return air provision ensures continuous
recirculation of filtered air within the cabinet, maintaining cleanliness and minimizing contamination risks.
These systems are widely used in pharmaceutical, biotechnology, microbiology, sterile compounding, tissue culture, sampling, dispensing, and research laboratory applications.

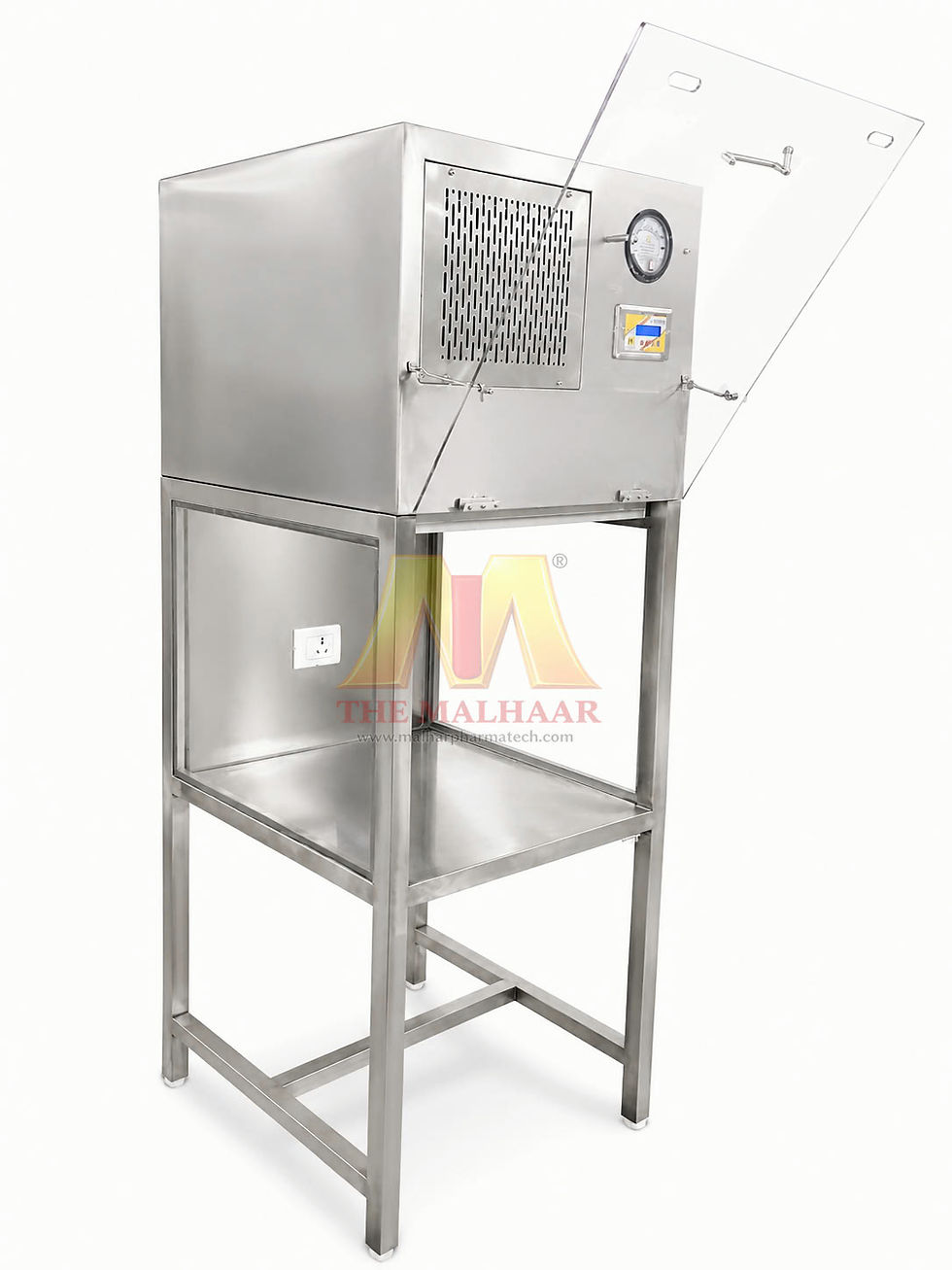

VERTICAL LAMINAR AIR FLOW
Standard Specifications
Construction
- Constructed from premium quality SS 304 Stainless Steel with elegant Matt Finish
- Durable, corrosion-resistant, and easy-to-clean structure
Control System
- Advanced control panel with Display Indication System
- Feather-touch switches for:
- Blower
- Fluorescent Light
- UV Light
- Integrated LCD Digital Hour Meter for operational monitoring
HEPA Filtration System
- HEPA Filter Grade: H14 / EU14 Minipleat Type
- Filter Media: Sub-micronic glass fiber with hot melt separator technology
- Filtration Efficiency:
- 99.995% @ MPPS
- 99.999% down to 0.3 micron
- Frame Material: Aluminum
Fine Filtration System
- Fine Filter Grade: F5 / EU5
- Filter Media: HDPE Non-Woven with Aluminum Mesh Support
- Efficiency: 95% down to 5 micron
- Frame Material: Aluminum
Blower System
- High-performance AC Centrifugal Blower
- Low noise and vibration operation
- Voltage: 230V AC
Pressure Monitoring
- Magnehelic Differential Pressure Gauge
- Range: 0 – 25 mmWC
- Ensures accurate filter pressure monitoring
Validation & Testing
- SS 304 DOP / PAO Test Port provided for filter integrity testing
Visibility & Accessibility
- Side panels fitted with Polycarbonate Glass and aluminum channels
- Front sash with
- Manual opening and closing arrangement
- Manual locking system
- Provides excellent visibility and operator safety
Lighting System
- UV Light: 5–18 Watt with dedicated hour meter
- Fluorescent Light: 5–18 Watt for clear workspace illumination
Electrical Specifications
- Power Supply: 230V, Single Phase
Airflow Performance
- Average Air Velocity: 90 ± 20 FPM
- Maintains uniform vertical laminar airflow for contamination control
