Air Shower units are specially designed enclosed entry systems installed between non-clean and cleanroom areas to minimize particulate contamination before personnel or material enter controlled environments. The system delivers high-velocity HEPA-filtered air through strategically positioned nozzles to effectively remove dust, lint, and loose contaminants from garments and exposed surfaces.
Designed for pharmaceutical, biotechnology, electronics, healthcare, and cleanroom applications, the Air Shower helps maintain cleanliness standards and supports contamination control protocols in critical production areas.
Working Principle
The Air Shower operates by recirculating high-velocity HEPA-filtered air through adjustable stainless steel nozzles positioned along the side walls. During the air shower cycle, contaminants are dislodged from personnel or material surfaces and captured through the filtration system before clean air is recirculated.
An electro-mechanical interlocking system prevents both doors from opening simultaneously, ensuring proper contamination control and maintaining cleanroom integrity.

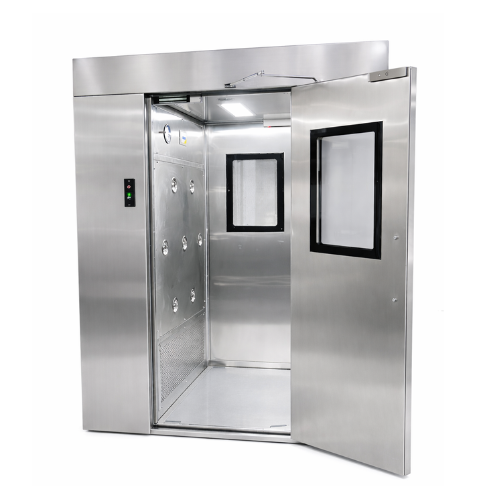

AIR SHOWER
Construction Features
- Inner and outer body constructed from high-quality SS 304 stainless steel with matte finish
- Smooth internal surface for easy cleaning and maintenance
- Robust structure suitable for pharmaceutical and cleanroom applications
- Compact and hygienic design for long service life
Door System
- SS 304 double-wall insulated doors
- 5 mm thick toughened glass viewing window
- Heavy-duty SS 304 hinges
- Automatic door closer provided
- Ergonomically designed for safe and reliable operation
Interlocking & Safety System
- Electro-mechanical door interlocking system
- Prevents simultaneous opening of both doors
- Both doors remain locked during the air shower cycle
- Emergency stop push button provided for operator safety
Filtration System
Pre Filter- Grade: F5 / EU5
- Efficiency: 95% down to 5 micron
- Media: HDPE non-woven synthetic media with aluminum mesh support
HEPA Filter
- Grade: H14 / EU14 Mini Pleat
- Efficiency:
-
- 99.995% efficiency at MPPS
- 99.999% efficiency down to 0.3 micron
- Media: Sub-micronic glass fiber
- Frame: Aluminum construction
Blower System
- High-performance double shaft centrifugal blower
- Motor Power: 1.0 HP
- Speed: 2800 RPM
- Electrical Supply: 415 V, 3 Phase
- Designed for continuous and efficient operation
Airflow System
- SS 304 adjustable air nozzles
- Nozzle Diameter: 25 mm
- Air Velocity: 4000 – 6000 FPM
- Uniform high-velocity airflow for effective particle removal
- Optimized airflow pattern minimizes contamination carryover
Monitoring & Validation Features
- Magnehelic differential pressure gauge
- Pressure Gauge Range: 0 – 50 mmWC
- SS 304 DOP / PAO testing port for HEPA filter integrity validation
- SS 304 atmospheric nozzle provided
Lighting System
- Energy-efficient LED lighting
- Power Range: 9 – 24 Watt
- Bright and uniform illumination inside chamber
Electrical & Control System
- User-friendly control panel with timer
- Adjustable air shower cycle from 30 seconds to 5 minutes
- Low noise operation ≤ 65 dB
- Reliable electrical system designed for industrial applications
Key Benefits
- Reduces particulate contamination effectively
- Improves cleanroom operational efficiency
- Enhances personnel hygiene compliance
- Maintains cleanroom pressure integrity
- Durable, hygienic, and easy-to-maintain construction
